| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah@0.2C |
| Energy | 1280Wh |
| Internal Resistance | ＜45mΩ |
| Cycle Life | 3000 Cycles @0.2C Charging/Discharging,Until 70% Capacity |
| Self Discharge | ＜3.5% per month at 25℃ |
| Max.Charging Voltage | 14.0-14.6V |
| Charging Mode | At 0℃-45℃ temperature,charged to 14.6V at a constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6V until the current was not more than 0.02C 5A |
| Charging Current | 20A |
| Max.Charging Current | 50A |
| Discharging Current | 20A |
| Max.Continuous Current | 100A |
| Max.Pulse Current | 200A(＜3S) |
| Discharging Cut-Off Voltage | 10.0 |
| Charge Temperature | 0℃-45℃ @60±25% Relative Humidity |
| Discharge Temperature | -20℃-60℃ @60±25% Relative Humidity |
| Storge Temperature | 0℃-45℃ @60±25% Relative Humidity |
| Water Dust Resistance | IP55 |
| Cell&Format | IFR32700 N60,4S17P |
| Casing | Plastic |
| Dimension(L*W*H) | 328*172*220mm |
| Weight | Approx. 12.6kg |
| Terminal | M8 |

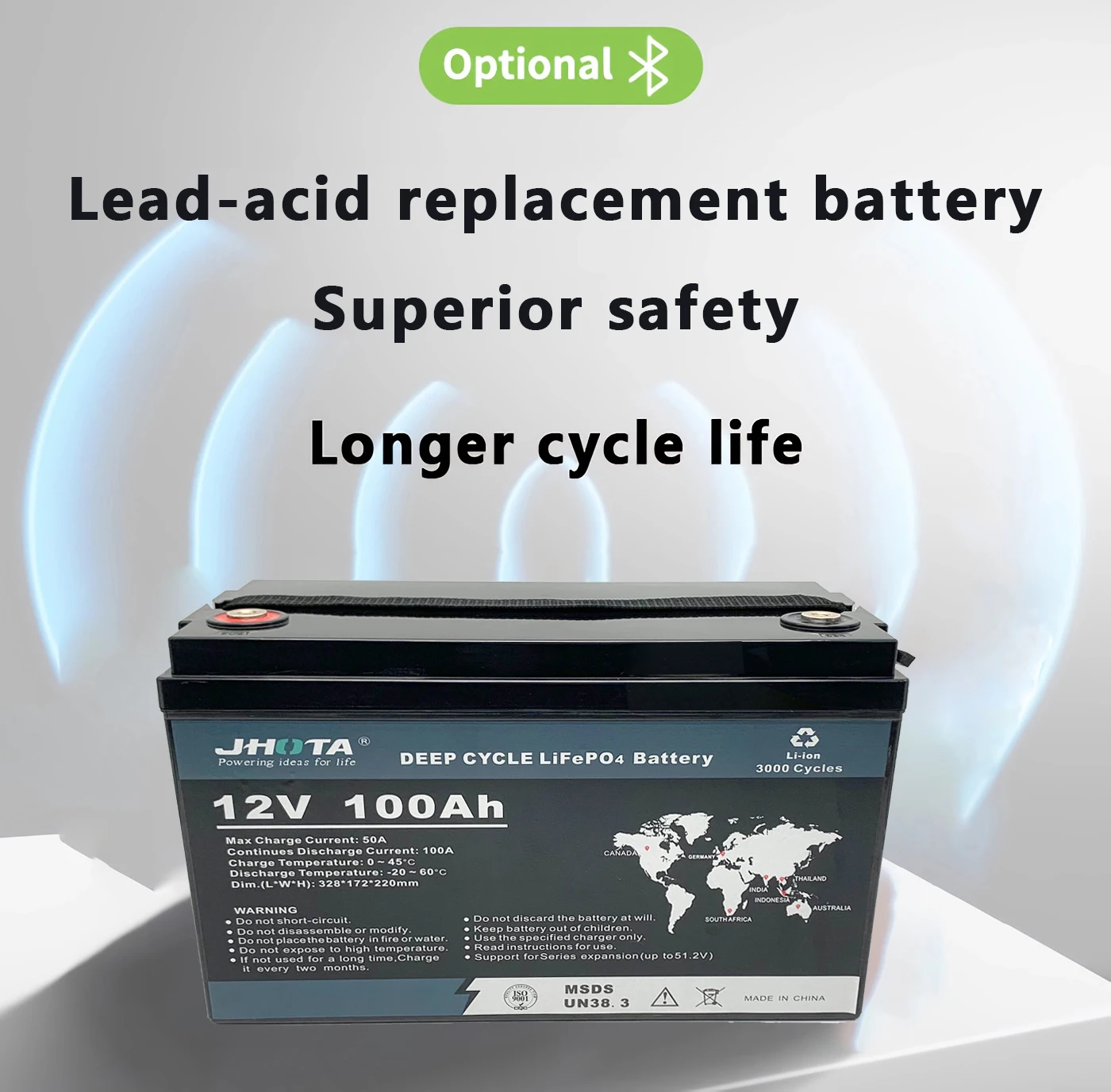

12.8V 100AH LiFePO4 Battery With BMS And Waterproof Case For RV Motorhome |
supports series connection to 51.2V
Positive and negative terminal posts
Max.Continuous Current: 100A
Quick details:
1.MOQ:5
2.Support personal customization
3.Application: Electric Trolling, Motor Boat, RV, Energy storage system
4.Expert/Factory/manufacture
5.Deep cycle with 3000 times
6.Enjoy 3 years warranty
Appliciation
1. Outdoor activities such as camping, hiking, and boating where portable energy storage is needed for charging devices and powering small appliances.
2. Emergency situations such as power outages, natural disasters, and off-grid living where a portable energy storage system can provide backup power for essential devices and equipment.
3. Remote and off-grid locations such as rural communities, construction sites, and scientific research stations where portable energy storage is essential for powering equipment and tools.
4. Mobile and transportation applications such as electric vehicles, drones, and mobile medical devices where portable energy storage is required for powering and recharging.
5. Entertainment and events such as music festivals, outdoor concerts, and film productions where portable energy storage is used for lighting, sound systems, and other equipment.
Q: Who are we?
A: We are based in Guangdong Province, China, starting in 2009, selling to North America(30.00%), Southeast Asia(20.00%), Northern Europe(15.00%), Mid East(10.00%), South America(5.00%), Central America(5.00%), Eastern Asia(5.00%),South Asia(5.00%), Domestic Market(3.00%), Africa(2.00%). There are a total about 51-100 people in our office.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q: What can you buy from us?
Battery, Primary battery, Lithium battery, Lithium-ion battery, Batteries for vehicles, Battery packs customized. etc.
Q: Why should you buy from us not from other suppliers?
Shenzhen JHOTA Technology Co., Ltd. adheres to the concept of quality-oriented and technological innovation and has established a sound management system. Have an experienced, professional and efficient development, manufacturing and quality management team.
Q: What services can we provide?
Accepted Delivery Terms: FOB,FCA；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.
-
Product Tags:
|
|
Waterproof RV Motorhome Lithium Battery 12.8V 100AH LiFePO4 Battery With BMS Images
|
